Density
Water absorption
Tensile strength
Cantilever impact strength
Modulus of elasticity
Elongation at break
Linear expansion coefficient
1.86MPa Heat Deflection Temperature
Volume Resistivity
unit
g/cm3
%
Mpa
J/m
Gpa
1/K
℃
Ω·cm
PA612
1.09
0.4
62
54
0.2
200
5×10-5
60
2.5×1015

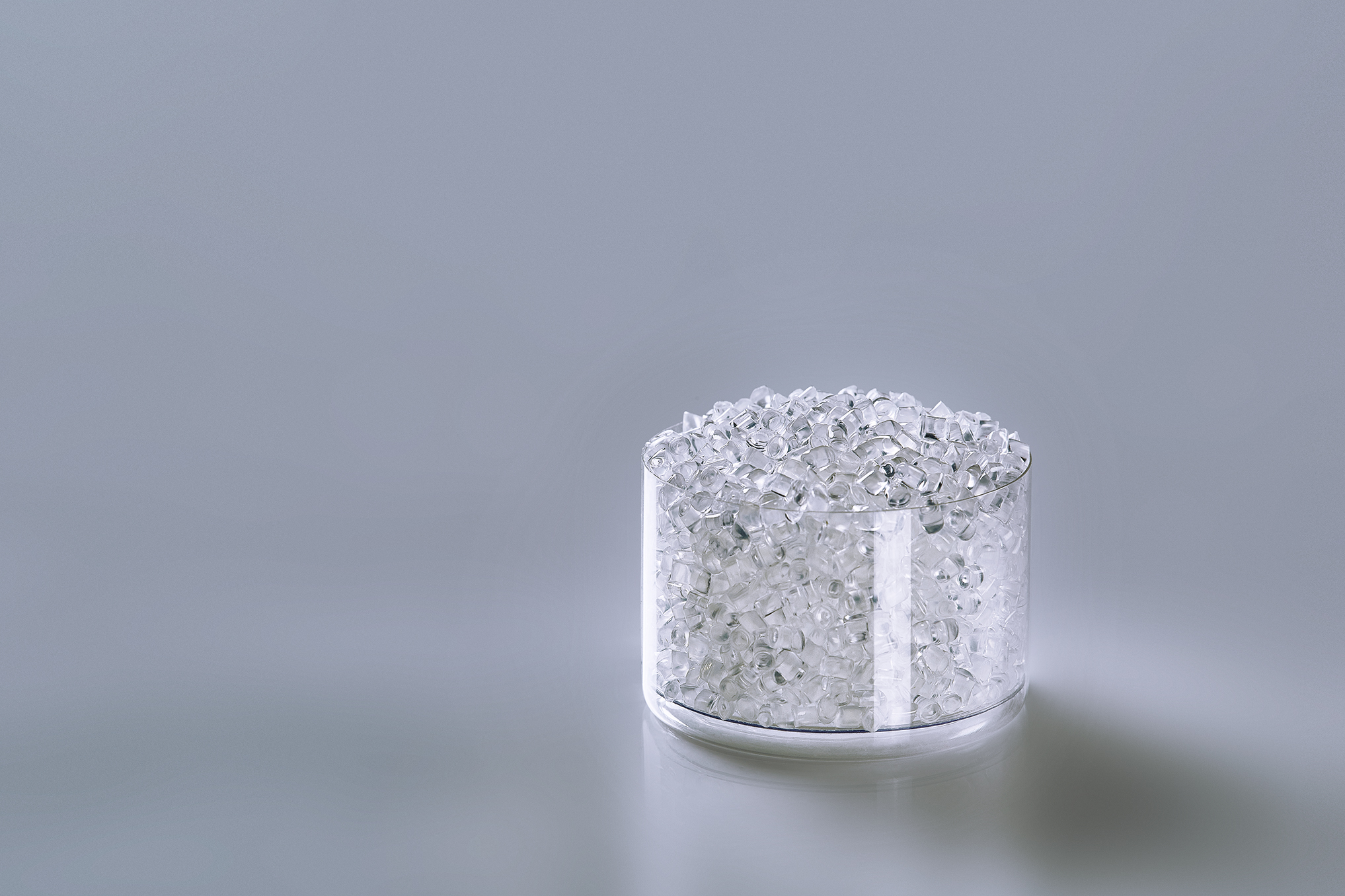

PA612 (Polyamide 612 or nylon 612) is a milky white to light yellow translucent solid made by the condensation polymerization of the neutralized salt of dodecanedioic acid and hexanediamine. General properties are similar to those of PA610 except it has better flexibility and dimensional stability, and has lower water absorption. End use applications include monofilaments, cables and ropes, coil skeletons, mechanical components, tool frames, ammunition boxes, etc.
